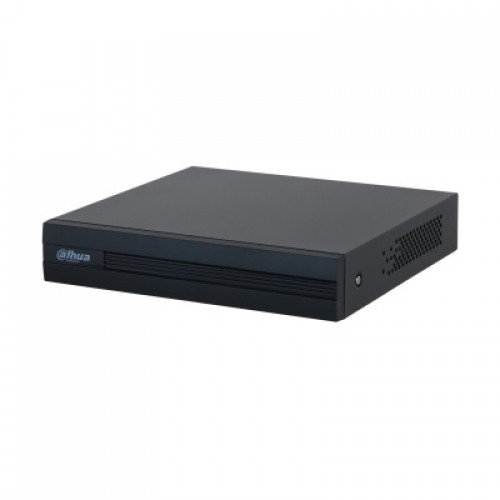

DAHUA DVR 1B08-1 PENTA BRIDE 8 CHANNEL
Key Features
Model: XVR1B08-I
H.265+/H.265 dual-stream video compression
Supports Full channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 10 channels IP camera inputs
Specification
System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded linux |
Audio and Video | |
| IP Camera Input | 8 channels, BNC |
| Two-Way Talk | Reuse audio in/out, RCA |
Display | |
| Interface | 1 HDMI; 1 VGA |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
Recording | |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 1080N; 720p; 960H; D1; CIF |
| Record Rate | Main Stream: 8-channel: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps) Sub stream: 8-channel: CIF (1 fps–7 fps) |
| Bit Rate | 32 kbps–4096 kbps per channel |
| Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
Record Interval | 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s |
Video Detection And Alarm | |
| Trigger Event | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm Input | N/A |
| Relay Output | N/A |
Playback And Backup | |
| Sync Playback | 1/4/9 |
| Search Mode | Time/Date; Alarm; MD and Exact Search (accurate to second) |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
| Backup Mode | USB Device/Network |
Third Party Support | |
| Third Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
Network | |
| Interface | 1 RJ-45 Port (100 Mbps) |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Maximum User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
Storage | |
| Internal HDD | 1 SATA port, up to 6 TB capacity |
| eSATA | N/A |
Auxiliary Interface | |
| USB | 2 USB ports (USB 2.0) |
| RS232 | N/A |
| RS485 | N/A |
Power | |
| Power Supply | DC 12 V/1.5 A |
| Power Consumption | < 7 W |
Component Environment | |
| Operational Conditions | –10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH) |
| Storage Conditions | –20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH) |
Construction | |
| Dimensions | Cooper 1U, 198 mm × 202.9 mm × 41.5 mm (7.81'' × 7.99'' × 1.63'') |
| Net Weight | 0.62 kg (1.37 lb) |
| Gross Weight | 1.13 kg (2.49 lb) |
